High-Yield Image-Based Questions for NEET PG 2026

Let’s look at the numbers. Based on recent trends, about 18% of your NEET PG paper is going to be image-based. That is roughly 36 questions, which translates to a massive 144 marks.

Over our 10 years of mentoring medical students, our team has seen many aspirants treat images like simple flashcards. They look at a picture, memorize the name, and move on.

But here is the reality of the 2026 pattern: The examiner doesn't care if you can name the image.

Identification is now just the entry ticket. The actual question is almost always a second-tier or third-tier test. You might spot a biconvex bleed on an NCCT in two seconds, but if you don't know the exact surgical threshold or the vessel responsible, you’ve lost the mark. In 2026, images are clinical triggers for management decisions.

Why Images Are the Ultimate Strategic Advantage

If you want a top 1,000 rank, you have to dominate the IBQs. Here is why:

1. Speed is Everything: Recognizing a visual sign (like the Bird's beak or Target lesions) takes 5 seconds. This buys you the time you need for the 10-line Medicine vignettes that are coming later in the paper.
2. Objective Accuracy: Clinical text can be ambiguous. A diastolic notch on a Doppler or a Reed-Sternberg cell is objective and absolute. There is no room for misinterpretation if you know the pattern.
3. The Clinical Reflex: NEET PG wants doctors, not parrots. Images simulate the real-world bedside experience.

Download Free NEET PG PYQs PDF – Limited-Time Access

Top 10 Image-Based Scenarios for NEET PG 2026

We have curated these 10 scenarios where the image is just the starting point.

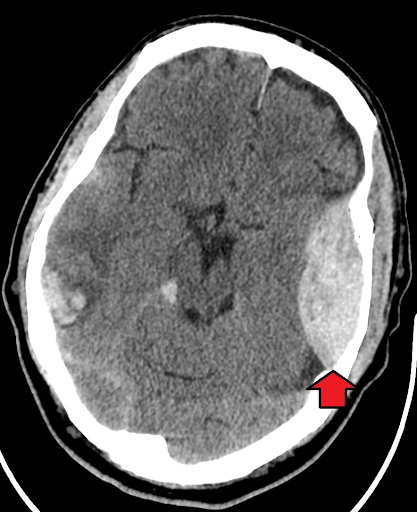

1. Extradural Hematoma (EDH)

Image CC: James Heilman, MD

• The Real Test: What is the next best step in management?
• Answer: If the hematoma is> 30 cm³, or there is a midline shift> 5 mm, or the GCS is dropping, emergency craniotomy and evacuation.

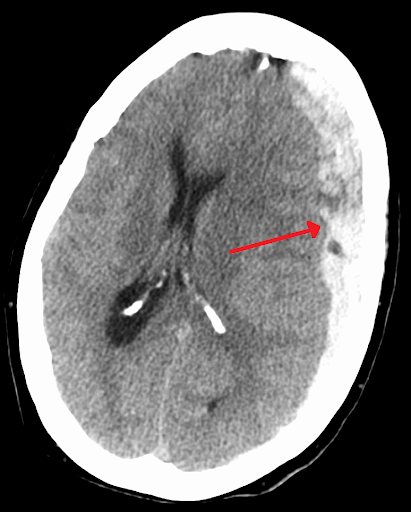

2. Subdural Hematoma (SDH)

Image CC: James Heilman, MD

• The Real Test: Which anatomical structure is the source of this bleeding?
• Answer: Bridging Veins. (Watch out: examiners love putting Middle Meningeal Artery as a distractor).

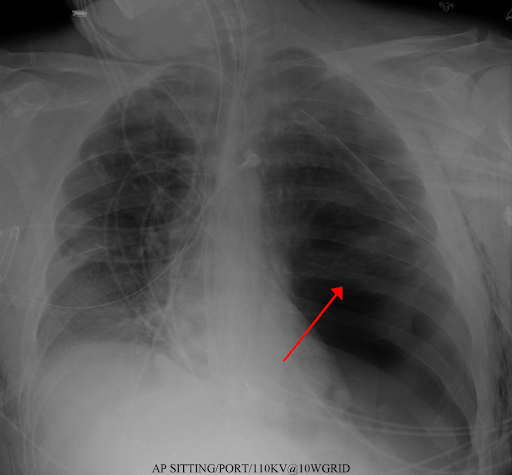

3. Tension Pneumothorax

Image CC: James Heilman, MD

• The Real Test: Where is the current preferred site for emergency needle decompression?
• Answer: The 5th intercostal space, just anterior to the mid-axillary line. (The old 2nd ICS teaching is now a secondary choice).

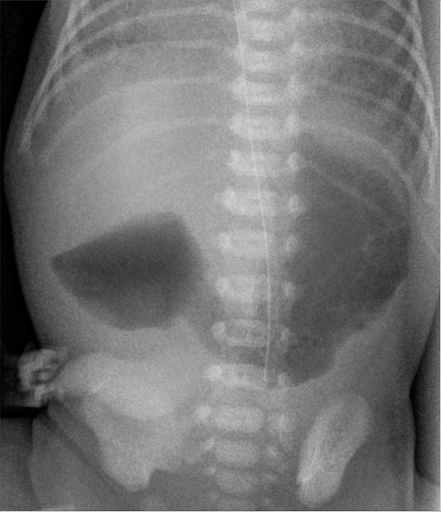

4. Duodenal Atresia

Image CC: Hellerhoff

• The Real Test: What is the most common chromosomal anomaly associated with this?
• Answer: Trisomy 21 (Down Syndrome).

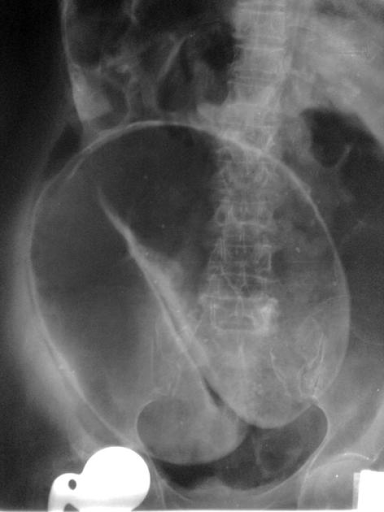

5. Sigmoid Volvulus

Image CC: Wael Nemattalla

• The Real Test: What is the first-line management for a stable patient?
• Answer: Sigmoidoscopic detorsion. (Surgery is only the first step if the patient is unstable or peritonitic.

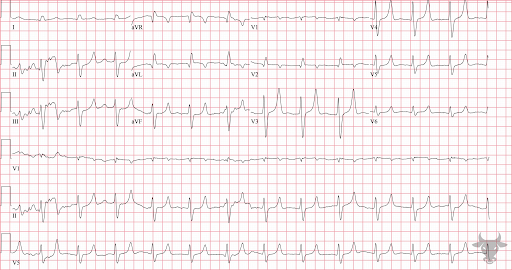

6. Acute Hyperkalemia

• The Real Test: Which drug should you administer first to protect the heart?
• Answer: Calcium Gluconate (10% IV). It doesn't lower K+, but it stabilizes the cardiac membrane.

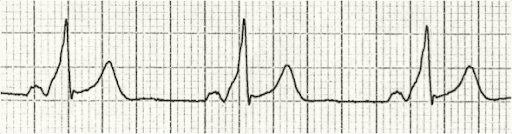

7. WPW Syndrome

Image CC: Mike Cadogan and Robert Buttner

• The Real Test: Which drug is absolutely contraindicated in this patient?
• Answer: Digoxin or Verapamil. They block the AV node and can force conduction through the accessory pathway, leading to VF.

Also Read: NEET PG Exam Pattern 2026 - Marking Scheme, Question Types, Exam Mode

8. Hodgkin Lymphoma

Image CC: Ed Uthman, MD

• The Real Test: Which immunohistochemistry (IHC) markers define these cells?
• Answer: CD15 and CD30.

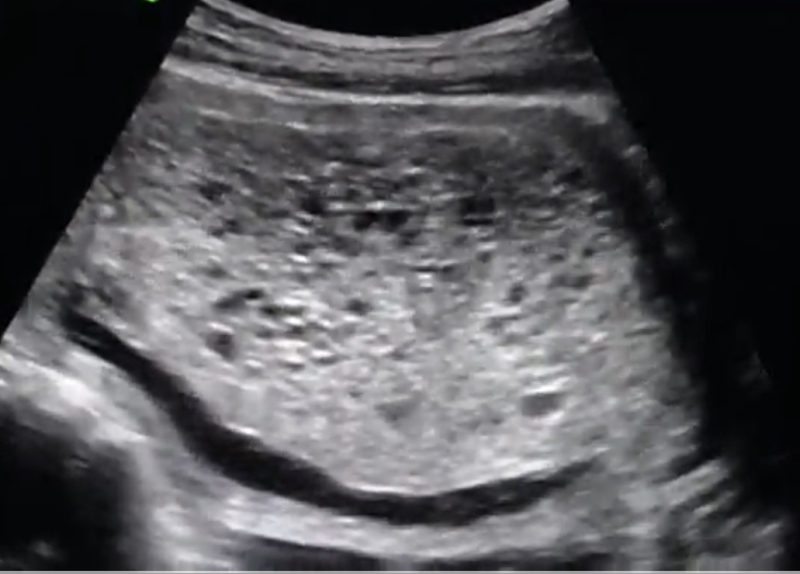

9. Molar Pregnancy

Image CC: Zalak Karena, MS

• The Real Test: What is the next best step for definitive treatment?
• Answer: Suction and Evacuation.

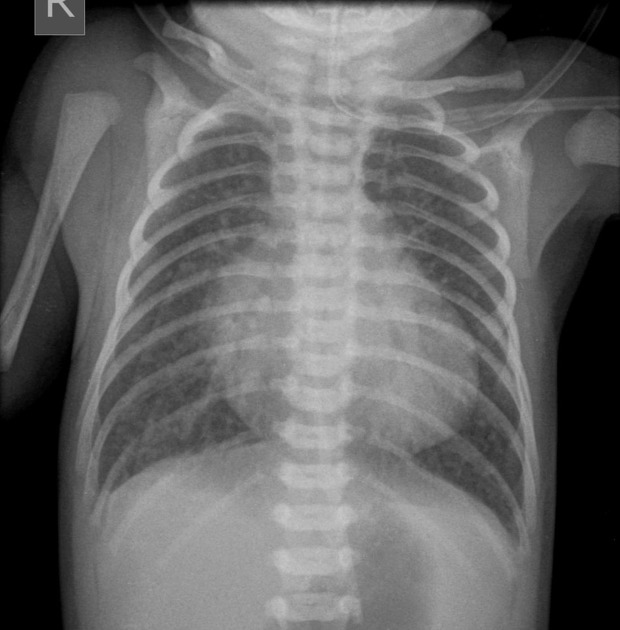

10. Transposition of the Great Arteries (TGA)

Image CC: Subhan Iqbal

• The Real Test: Which life-saving procedure must be done immediately?
• Answer: Rashkind’s Balloon Atrial Septostomy.

Also Read: Top 10 Most Demanding Branches of PG Medical Courses in India

The PrepLadder Version XI Edge

If you find images difficult, it’s usually because you haven't practiced them in a testing environment. In our April 2026 update, we have introduced specific features to fix this.

1. The Revamped QBank (Version XI)

We have re-engineered every image-based question. Instead of asking you to identify a picture, our revamped QBank embeds the image into a clinical vignette. This forces you to process the patient's history and the visual findings simultaneously, which is exactly how you will be tested on exam day.

2. Specialized Image-Based Mini Tests

This is our team's favorite new feature. Version XI now includes Image-Based Mini Tests. These are short, high-intensity modules that only contain IBQs.

• The Benefit: It builds visual stamina.
• The Goal: To help you recognize pathognomonic signs in under 10 seconds through pure repetition and high-resolution visual exposure.

3. High-Res Zoom & Side-by-Side Comparisons

Our app now allows for ultra-high-resolution zooming on histopathology and dermatology slides. We also provide Comparison Treasures where you can see similar-looking images (like Pemphigus vs. Pemphigoid) side-by-side with clear pointers on the differentiators.

Also Read: NEET PG 2026: Exam Dates, Syllabus, Pattern, Registration, Eligibility, Preparation Tips

Frequently Asked Questions

Q1. How many images will I face in NEET PG 2026?

Expect roughly 36 to 40 image-based questions. However, remember that another 20-30 questions might have a "mental image" component where they describe a finding in text that you need to visualize.

Q2. Where are the most IBQs found?

Radiology, Dermatology, and Pathology are the Big Three. However, Surgery (instruments/X-rays) and Medicine (ECGs/Fundoscopy) are catching up fast.

Q3. How should I use the Image-Based Mini Tests on the app?

Do one mini-test every evening before you stop studying. It’s a great way to cool down while still doing high-yield revision. Treat it like a game of pattern recognition.

Q4. Is it enough to just see the Treasures?

Treasures are great for a final-week sweep, but the Revamped QBank is where the real learning happens. You need to solve questions where the image is just a clue, not the whole answer.

Q5. What is the most common mistake with IBQs?

Ignoring the text. Sometimes the image is classic, but the text adds a contraindication or a specific patient factor that changes the management. Always read the last line!

Q6. Do I need to learn the physics of MRI/CT?

Very rarely. Focus 95% of your energy on the Pathology shown in the image and 5% on the Basics (like NCCT vs. CECT).

Clinical Pearl

In the exam hall, an image is a gift. It is the only part of the question that doesn't lie. If you recognize the pattern, you have the diagnosis. If you know the app's mini-tests, you have the mark.
